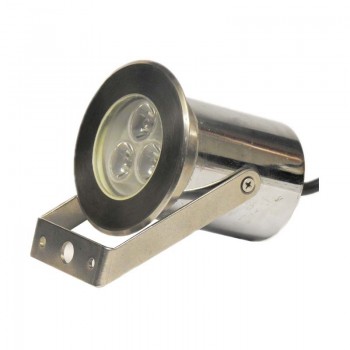

arle / w/p / m7
3w / 6w / 9w
| Performance | ||||
| arle / w/p / m7 | CCT | CRI | Lumen P/W | |
| Single Color | 2750k | >80 | 110/w | |
| 2950k | >80 | 120/w | ||
| 4000k | >80 | 130/w | ||
| 6000k | >80 | 140/w | ||
| RGB | ||||
| LED Type | Emitter | |||
| LED Make | Edison | |||
| Available Beam Angles | 15o/25o/30o/45o/60o | |||
| Input Voltage | 12 V AC/DC / 220v | |||
| Dimming Options | Triac / Analog | |||
| Construction Details | Body made of SS 304/316 (Optional) grade with optimum inbuilt aluminium heat sink 3 Emitter LEDs with current capacity upto 750m A, Optical Lens, Dow Corning EE-9100 Epoxy Resin, Brass Glands, and toughened edge glass supplied with aluminium external casing. | |||
| Finish | Standard SS (Other options on demand) | |||
| Dimensions | Ø 85mm, H 100mm | |||
| Installation Option | Surface | |||
| Ambient Operating Temperatures | -20oc = 80oc | |||
| Protection Rating | IP 68 | |||
| Driver Option | Built in / Remote | |||
