Description

12W Narrow Beam LED Uplighter is a high-performance architectural luminaire designed for precision facade illumination, column lighting, and long-throw accent applications. Featuring an ultra-narrow $5^\circ$ beam angle, this fixture is engineered to project a sharp, controlled beam of light up to 36 feet, minimizing light spill while delivering exceptional vertical reach. Equipped with an integrated anti-glare cowl/snoot, it ensures optimal visual comfort for high-end exterior landscapes and structural designs.

LED WATT : 12W

INPUT : AC 185-265V

BODY COLOR : DARK GREY

CCT : 3000K

DIMENSION : 108*108*H68 MM

BEAM ANGLE : 5°(UPTO 30 Feet)

IP : 65

Product Details

• Specifications

  Performance

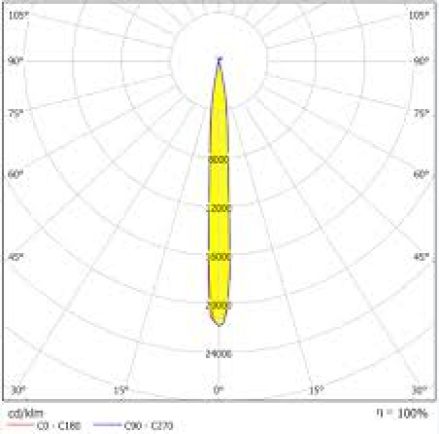

  NARROW BEAM UP LIGHTER 766	CCT	CRI	Lumen P/W
  NAROOW UPLT766	3000K	80	120 -140

• Application

  • High-Rise Facades: Creating clean, vertical ribbons of light on columns, pillars, and piers.

  • Bridge & Monument Lighting: Accenting tall architectural elements where the fixture must be placed at a distance.

  • Landscape Features: Precise uplighting of   trees or structures without bleeding light into adjacent windows or dark skies.
