Description

Model : arle / upd / s4

• Luminaire made of pressure die cast aluminium,extruded aluminium & non corrosive stainless steel fasteners.
•  Clear toughened glass.
•  Silicone gasket.

 Hybrid optics with lens & reflector combination for higher efficiency,lower optical losses with optimum glare suppression.
LED WATT : 08W /09W/12W

•  Single Color (CCT) : 2750k , 2950k , 4000k, 6000k
•  Multi color : RGB
•  Lumen / watt : 110 lm - 140 lm
• LED Make : Bridgelux / CREE
• Available Beam Angle : 15°/25°/30°/45°/60°(Asymetric
  lense)
•  Input Voltage : 220V AC.

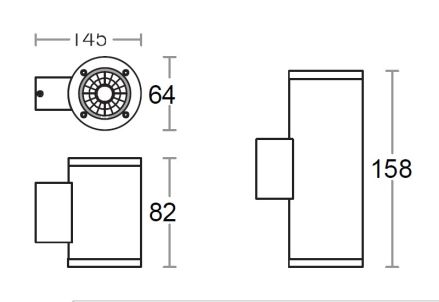

•  Dimensions : H - 158 mm / Down only : 82mm
•  IP ( Ingress Protection ) : IP 66 / 67

Product Details

• Specifications

  Performance

  ZION UD	CCT	CRI	Lumen P/W
  ZION UD	2750k , 2950k , 4000k, 6500k, RGB,RGBWW, RGBWH	>80	120 -140

• Application

  Residential,Building facade,Commercial
  centres,Passages,Pathways,Sculptures and Structures.
  Product Benefits
  Sturdy construction in order to maintain performance of the
  luminaire and to reduce maintenance costs.
  • Quick & simple installation with low maintenance.
  • Clear glass in the front with continuous silicone gasket to
  ensure adequate sealing.
  • Sustainable LED technology offers durability and optimal
  light output with low power consumption.
