Description

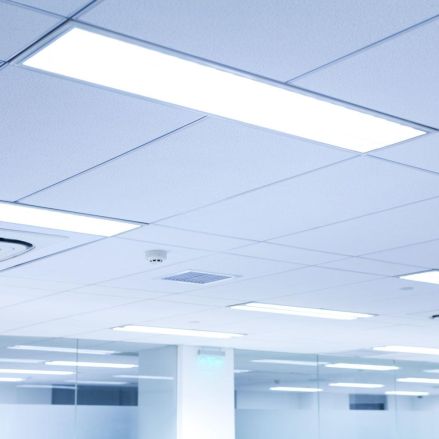

LED Semi Backlit Panel Light combines the advantages of both edge-lit and backlit technologies, providing higher brightness, excellent light uniformity, reduced glare, and improved heat dissipation. It is ideal for commercial and institutional lighting applications where energy efficiency and visual comfort are essential.

Available Models:

• 2×2 Ft (600 × 600 mm) – 36W
• 1×4 Ft (300 × 1200 mm) – 36W
  Available Sizes    600 × 600 mm (2×2 Ft), 300 × 1200 mm (1×4 Ft)
  Power    36W
  Input Voltage    AC 220–240V, 50/60Hz
  LED Type    High-Efficiency SMD LEDs
  Driver    Flicker-Free Constant Current Driver
  Body Material    CRCA Powder-Coated Steel with Aluminium Frame
  Diffuser    High-Transmission PMMA / Polycarbonate
  Colour Temperature    3000K / 4000K / 6500K
  CRI    >80 Standard, >90 Optional
  Luminous Efficiency    Up to 120 lm/W
  Lumen Output    Approx. 4320 lm
  Beam Angle    120°
  Power Factor    >0.95 ,/ THD    <15%
  IP Rating    IP20
  Mounting Options
  Recessed Grid Ceiling
  Surface Mount Frame (Optional)
  Suspended Mounting Kit (Optional)


Product Details

• Specifications

  Performance

  LED SEMI BACKLIT PANEL 2X2	CCT	CRI	Lumen P/W
  SEMI BACKLIT 2X2	3000K/4000K/6000K	80	110-140

• Application

  • Corporate Offices
  • Hospitals
  • Educational Institutions
  • Hotels
  • Banks
  • Conference Rooms
  • Retail Showrooms
  • Shopping Malls
  • Commercial Buildings
