Description

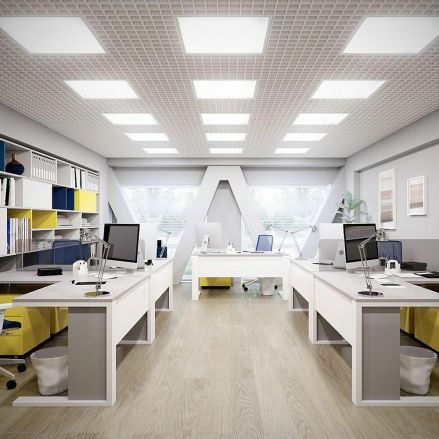

LED Slim Panel Light featuring a high-efficiency backlit/edge-lit design with uniform, glare-free illumination. Ideal for false ceilings in offices, hospitals, educational institutions, hotels, and commercial buildings.
Available Sizes    600 × 600 mm (2×2), 300 × 1200 mm (1×4)
Power :   36W / 40W / 48W / 54W (Model Dependent)
Body Material :    CRCA Powder-Coated Steel / Aluminium Frame
Diffuser :   High-Transmission PMMA / Polycarbonate Diffuser
Light Source    High-Efficiency SMD LEDs
Input Voltage    AC 220–240V, 50/60Hz
Driver    Flicker-Free Constant Current Driver
Colour Temperature    3000K, 4000K, 6500K
CRI    >80 Standard, >90 Optional
Luminous Efficiency    Up to 120 lm/W
Beam Angle    120°
Power Factor    >0.95
THD    <15%

Mounting Options

• Recessed Ceiling Mount (Standard)
• Surface Mount Frame (Optional)
• Suspended Mounting Kit (Optional)

  Dimmable Options : DALI / ANALOG (0-10V) / TRAIC

Product Details

• Specifications

  Performance

  LED SLIM EDGELIT PANEL 2X2	CCT	CRI	Lumen P/W
  2x2 EDLIT PANEL	3000K/4000K/6000K	80	110-140

• Application

  • Corporate Offices
  • Hospitals & Healthcare Facilities
  • Educational Institutions
  • Hotels
  • Retail Showrooms
  • Shopping Malls
  • Banks
  • Conference Rooms
  • Government Buildings
  • Commercial Complexes
