Description

MODEL NO. : Model : arle / spi / n3

• Luminaries housing & bracket made of die cast aluminium, aluminium & SS fasteners
• Toughened step extra clear safety glass 4mm is flushed
• Mounting bracket arrangement to facilitate easy installation at any desired location Swivel range of 0°-90°.
• LED WATT : 01W/03W
• Single Color (CCT)  :  2750k  , 2950k , 4000k, 6000k-6500k
• Multi color :  RGB
• Lumen / watt : 110 lm - 140 lm
• CRI > 80
• LED Type : COB / Emitter , LED Make : Cree  / Citizen
• Available Beam Angle : 15°/25°/30°/45°/ 60°(Asymetric )
• Input Voltage : 220V AC  / 12V DC
• Dimensions :      40xL70 mm , H 220 mm
• IP ( Ingress Protection ) : IP 66/67

Product Details

• Specifications

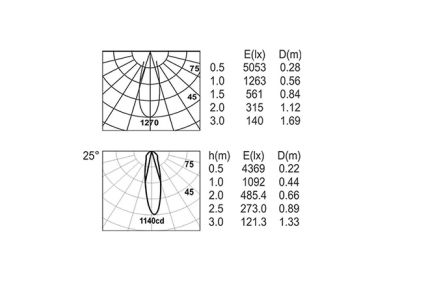

  Performance

  COMPACT MICRO SPIKE	CCT	CRI	Lumen P/W
  COMPACT MICRO SPIKE	2700k	80	110-140
  COMPACT MICRO SPIKE	3000K	80	110-140
  COMPACT MICRO SPIKE	6000K	80	110-140

• Application

  • Pathways,
  • Parks,
  • Sculptures,
  • Gardens, Structures and Landscape lighting.
