Description

MODEL NO. : arle / spi / n2

• Luminaire housing & bracket made of die cast aluminium, aluminium & SS fasteners
• Toughened step extra clear safety glass 4mm is flushed
• Mounting bracket arrangement to facilitate easy installation at any desired location Swivel range of 0°-90°.
• Additional cable length to be ordered separately
• LED WATT : 03W/06W/09W
• Single Color (CCT)  :  2750k  , 2950k , 4000k, 6000k
• Multi color :  RGB
• Lumen / watt : 110 lm - 140 lm
• Available Beam Angle : 15°/25°/30°/45°/ 60°(Asymetric )
• Input Voltage : 220V AC  / 12V DC
• Dimensions :      90 mm , H 220 mm
• IP ( Ingress Protection ) : IP 65 / 67 / 68
• Outdoor Casing : Aluminum Di-Cast
• Driver  : Built In­ / Remote

Product Details

• Specifications

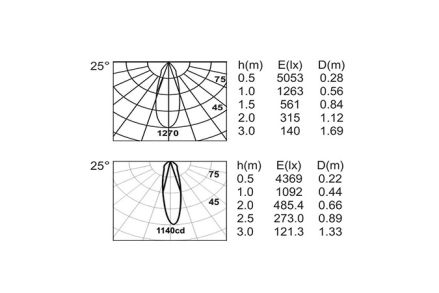

  Performance

  TINY SPIKE SS	CCT	CRI	Lumen P/W
  TINY SPIKE SS	2700K-6000K	80	110-140

• Application

  • Pathways
  • Parks
  •  Sculptures
  •  Gardens
  • Structures and Landscape lighting.
