Description

• Luminaire housing & bracket made of die cast aluminium, aluminium & SS fasteners
• Toughened step extra clear safety glass 4mm is flushed
• Mounting bracket arrangement to facilitate easy installation at any desired location Swivel range of 0°-90°.
• Luminaire supplied with one metre cable length and a IP67 connector. Silicone gasket
• LED WATT : 06W/18W
• Single Color (CCT)  :  2750k  , 2950k , 4000k, 6000k
• Multi color :  RGB
• Lumen / watt : 110 lm - 140 lm
• CRI > 80
• THD<10% , PF>0.95
• LED Type : Emitter
• LED Make : CREE / CITIZEN

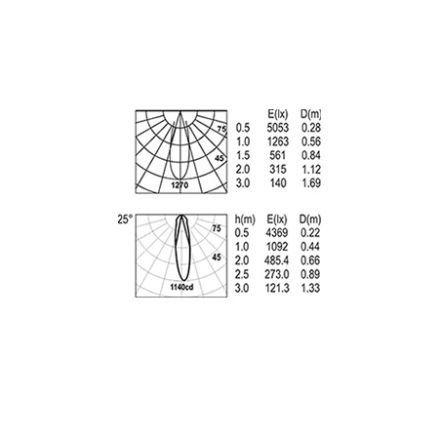

• Available Beam Angle : 15°/25°/30°/45°/ 60°(Asymetric )
• Input Voltage : 220V AC  / 12V DC
• Dimensions :      150 mm , H 120 mm
• IP ( Ingress Protection ) : IP 66 / 67

Product Details

• Specifications

  Performance

  SL BASE SPIKE	CCT	CRI	Lumen P/W
  AR SPIKE N5	2700K-6000K	80	110-140

• Application
