Description

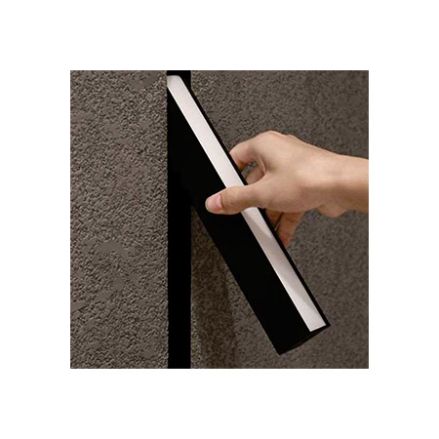

Magnetic Linear Diffused Light Module for a magnetic track lighting system.

• Magnetic plug-and-play installation.
• Uniform, dot-free illumination with opal diffuser.
• High-quality extruded aluminium body for excellent heat dissipation.
• Tool-free installation and repositioning.
• High colour rendering (CRI >90) for accurate colour appearance.
• Flicker-free operation with low glare.
• Compatible with 48V magnetic track lighting systems.

• AVLIABLE IN ANALOG DIMMING / DALI CONTROL &  SMART TUNABLE  AND DIMMABLE FOR OFFLINE -ONLINE : REMOTE CONTROLE / LUXURAY SWITCH (WIRELESS) , GOOGLE ASSISTANT (VOICE COMMAND):

  WATTAGE : 10W / 20W /30W
  MODEL : ARWY 6101 / 6102 / 6103
  LED : OSRAM
  Input Voltage    : DC 48V (Magnetic Track System)
  Driver   : Remote Driver (Integrated with Magnetic Track)
  CCT Options : 3000K / 4000K / 6500K
  LED Optics​​​​​​​ : Opal Polycarbonate Diffuser
  Light Distribution​​​​​​​ : Uniform Linear Diffused Light
  Beam Angle​​​​​​​ : 110°

Applications

Product Details

• Specifications

  Performance

  Magnetic Linear Diffused Light	CCT	CRI	Lumen P/W
  MAG LIN DIFF	3000K/4000K/6000K	80	120 -140
  MAG LIN DIFF	TUNABLE	80	120 -140

• Application

  • Residential Interiors
  • Offices
  • Retail Showrooms
  • Hotels
  • Art Galleries
  • Museums
  • Restaurants
  • Shopping Malls
  • Reception Areas
  • Display & Architectural Lighting
