Description

Features

• 48V DC constant voltage output for magnetic track lighting systems.
• High efficiency (>90%) with low heat generation.
• Stable, flicker-free power supply.
• Built-in protection against short circuit, overload, over-voltage, and overheating.
• Slim aluminium housing for easy installation in false ceilings.
• Compatible with recessed, surface-mounted, suspended, and circular magnetic track systems.

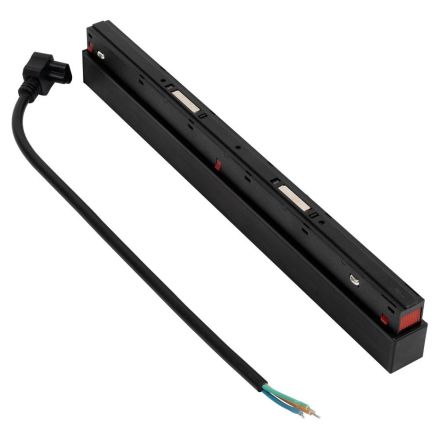

  Rated Power    200W
  Output Voltage    48V DC (Constant Voltage)
  Input Voltage    220–240V AC, 50/60Hz
  Driver Type    Constant Voltage LED Driver
  Efficiency    >90%
  Power Factor    >0.95
  THD    <10%
  Surge Protection    2.5 kV
  Protection    Short Circuit, Over Voltage, Over Current, Over Temperature
  Cooling    Natural Air Cooling
  Housing Material    Aluminium Metal Case
  IP Rating    IP20 (Indoor Use)
  Operating Temperature    -20°C to +45°C
  Storage Temperature    -40°C to +70°C


Product Details

• Specifications

  Performance

  Magnetic Track LED Driver – 200W (48V DC)	CCT	CRI	Lumen P/W
  MAG DRIVER	3000K/4000K/6000K

• Application

  Compatible Magnetic Track Lights

  • Magnetic Linear Diffused Lights
  • Magnetic Spot Lights
  • Magnetic Cylindrical Spot Lights
  • Magnetic Grille Lights
  • Magnetic Pendant Lights
  • Magnetic Flood Lights
