Description

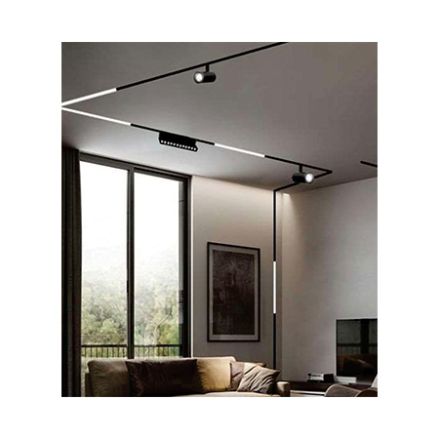

Magnetic Linear Spot Light Module for a 48V Magnetic Track Lighting System, designed for focused accent lighting in commercial and architectural spaces.

• Uniform glare-free linear illumination.
• Precision optical lenses for focused accent lighting.
• Deep anti-glare optical design
• Magnetic plug-and-play installation.
• Slim architectural design.
• Flicker-free operation.
• High CRI (>90) for true colour rendering.

  AVLIABLE IN ANALOG DIMMING / DALI CONTROL &  SMART TUNABLE  AND DIMMABLE FOR OFFLINE -ONLINE : REMOTE CONTROLE / LUXURAY SWITCH (WIRELESS) , GOOGLE ASSISTANT (VOICE COMMAND):

  Power Options : 6W /12W
  LED : CREE USA
  Input Voltage    :  DC 48V (Magnetic Track System)
  Driver   : Remote Driver (Integrated with Magnetic Track)
  CCT Options : 3000K / 4000K / 6500K
  LED Optics : Precision PMMA Optical Lens
  Light Distribution : Symmetrical Narrow Beam
  Beam Angle : 24° / 36°
  Glare Rating : UGR <19
  Optical Efficiency : >85%
  Reflector : Deep Anti-Glare Black Louver

  System Specifications

Track Voltage: DC 48V Magnetic Track

​​​​​​​Track Type: Recessed / Surface / Suspended Compatible

• Operating Temperature: -10°C to +45°C
• Body Finish: Black (Standard), White (Optional)
• Warranty: 3 Years

Product Details

• Specifications

  Performance

  MAGNETIC LINEAR SPOT LIGHT	CCT	CRI	Lumen P/W
  MAG LINEAR SPOT	3000K/4000K/6000K	80	120 -140

• Application

  • Luxury Residences
  • Retail Showrooms
  • Hotels
  • Art Galleries
  • Museums
  • Offices
  • Reception Areas
  • Restaurants
  • Shopping Malls
  • Display & Accent Lighting
